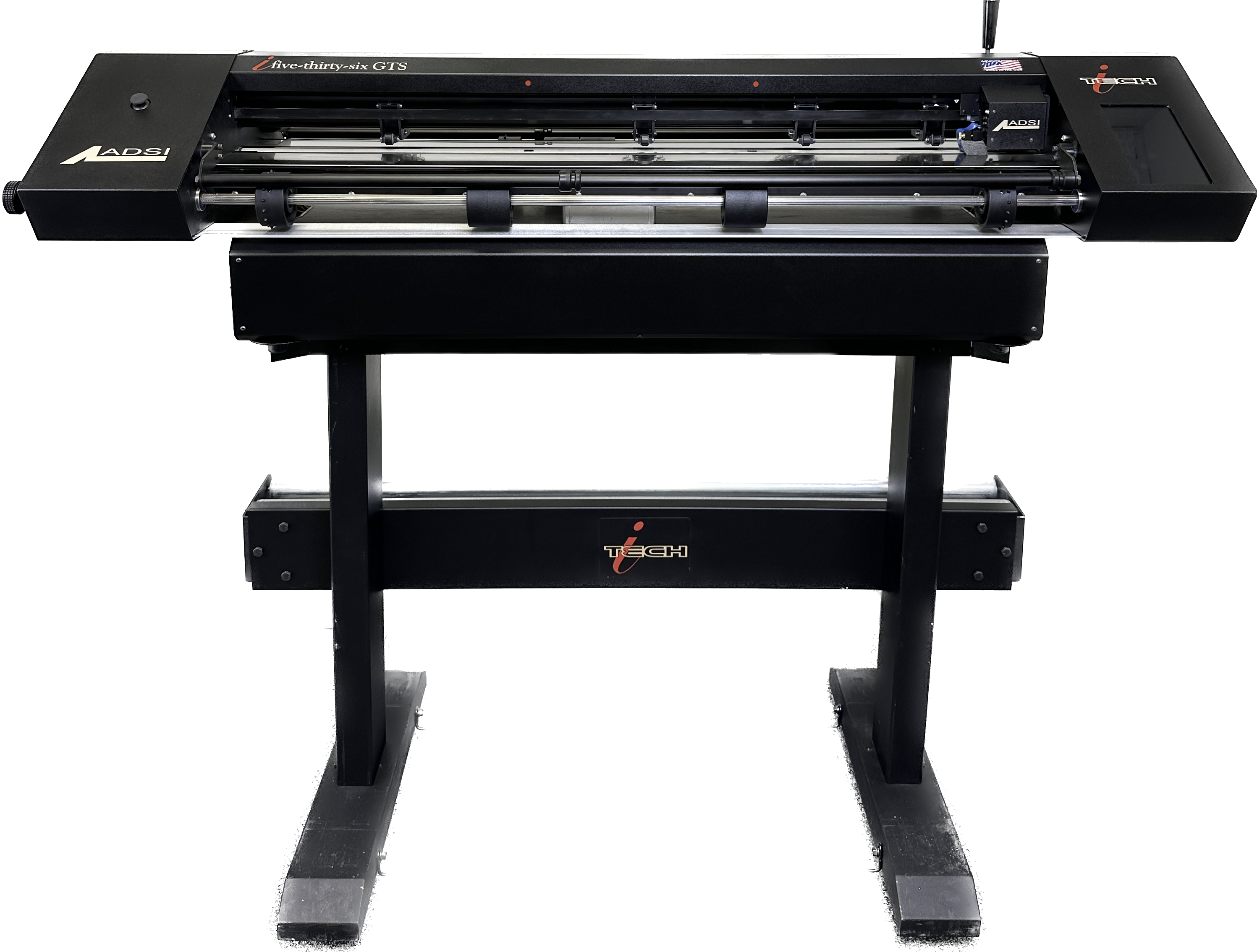

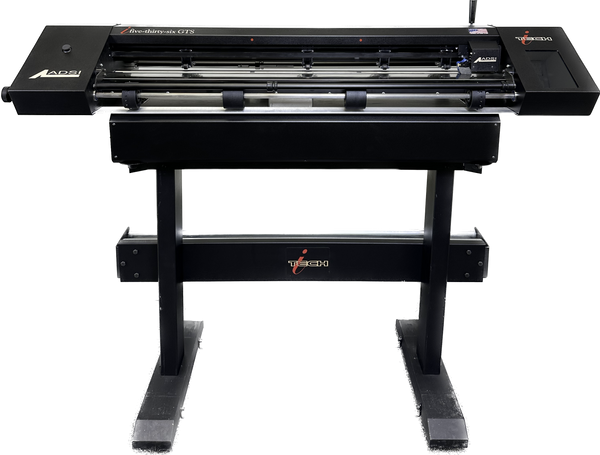

Allen Datagraph 536

$10,695.00

The Top Choice for Monument Fabricators

Don't settle for second best. Cut monument rubber, vinyl and more with the most versatile monument cutter in the industry.

Speed Up Your Set Up Time For Increased Productivity

Graphic user interface makes getting off the ground fast and easy
Compatible with the industry’s leading design and layout software programs

Built To Be Better Than The Rest

Offers accurate tracking and allows for the use of unpunched materials.
Dual drive system allows you to easily adjust your media sizes.

For more information expand the Specifications section below. You can also see more details and compare models here:

Allen 536GTS Brochure

Shipping rates vary based on your location and if you can unload the cutter from the truck or if we need to provide a lift with the truck. Call for details.

iTech 536 GTS Specs

Maximum Frame Size

Media width less 1 inch (2.5cm) x 150 feet

Cutting Technology

Swivel knife; Tangential Emulation

Memory Buffer

2 MB

Programmable Cut Speed

Selectable in 100 Steps

Acceleration

Selectable, 0.25 to 1G

Cutting Force

Selectable, 5.5 to 550 grams. Adjustable in increments of 100 steps

Knife Blades

45 Degree or 60 Degree

Pens

Roller Ball: Fiber Tip (HP Style)

Command Set

HPGL, HPGL/2

Interfaces

High-Speed USB/Ethernet

Media Types/Processed

Vinyl, screen print film, reflective, stencil, mask, magnetic, window tint, capton, etc.

Deluxe Stand (not included)

Steel construction; Media roll holder; Media catch baskets; casters.

Remote Panel

System set-up, control & diagnostics

Operating Temperature

32 to 117 F | 0 to 40 C

Operating Humidity

Relative, 5% to 95%

Physical Dimensions

36” Cutter 55” x 17” x 13” (140x43x33cm)

Weight

36” Cutter 65lbs, (29.3 kg)

Media Width

36” Cutter 2.5 to 36 inches (6 to 91cm)
