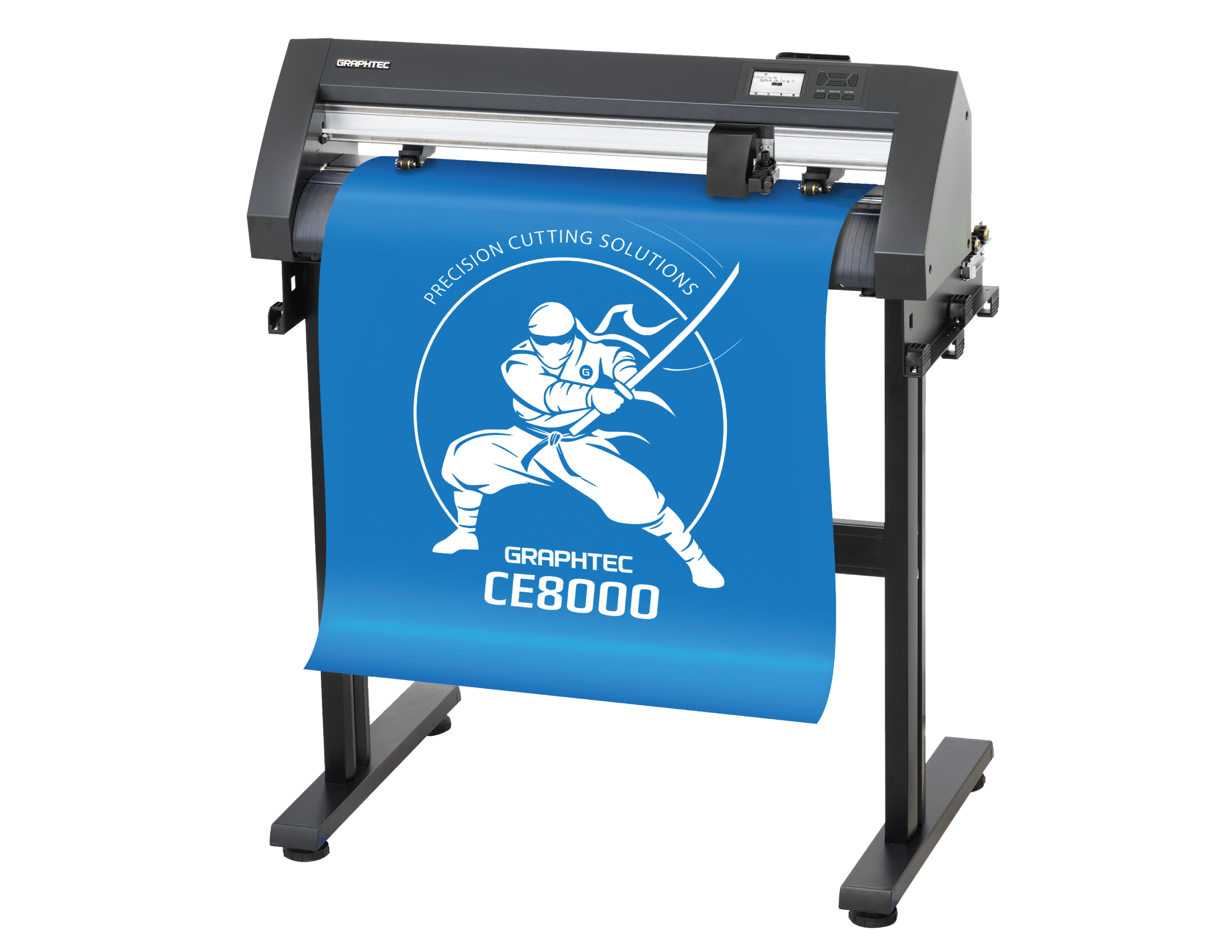

Graphtec CE8000-60 - 24" Plotter (stand included)
Specifications
| Item | CE8000-40 | CE8000-60 | CE8000-130 | |
|---|---|---|---|---|
| Configuration | Grit roller with digital servo drive system | |||
| Maximum cutting area (W x L) |
15" x 164' |
24" x 164' |
50" x 164' |
|
| Cutting area of guaranteed accuracy |
14" x 79" |
23” × 79” / 23”× 16.4’ *1 / *2 | 50”×79” / 49”×16.4’ *1 / *2 | |
| Mountable media width |
2" 19" |
2" 30" |
2" 54" |
|
| Number of push rollers | 2 rollers | 3 rollers | ||
| Maximum cutting speed | 24"/s, in all directions | 36"/s, at 45º direction | 39"/s, at 45º direction | |
| Maximum acceleration | Max. 21.2 m/s2 (2.2G) at 45º direction | 45.60' (13.9 m/s2), at 45º direction | ||
| Maximum cutting force | 4.41 N (450 gf) | |||
| Minimum character size | Approx. 5 mm (0.016") alphanumeric (depending on character font and type of media) | |||
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
| Repeat-ability | Max. 0.1 mm in plot up to 2 m (*1) | |||

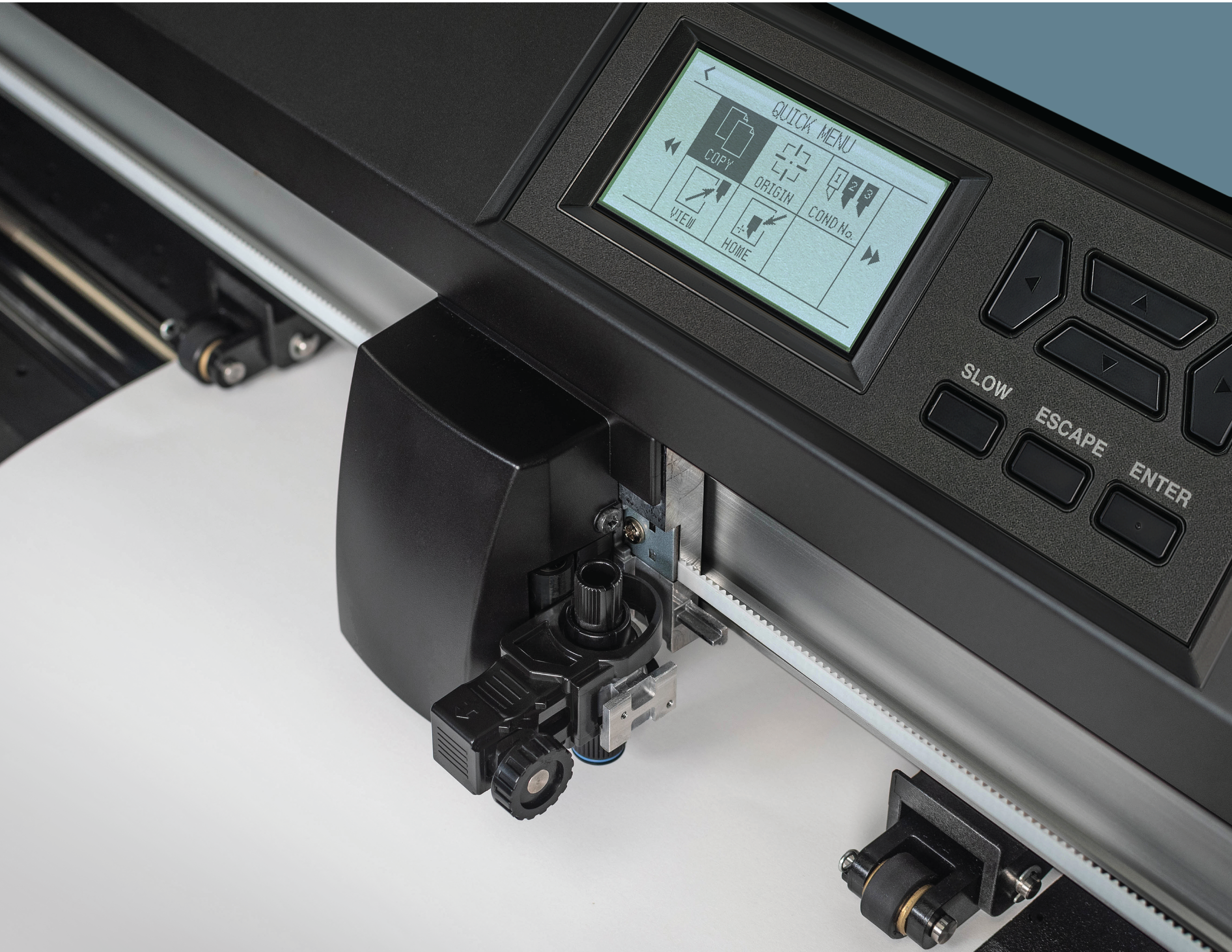

| Mountable number of tools | 1 tool | |||
| Blade type | Supersteel | |||
| Pen type | Oil-based ballpoint, Water-based fiber-tip pen | |||
| Media type | Self-adhesive marking film (vinyl, fluorescent, reflective) excluding high-intensity reflective film, up to 25 mil (.63mm) Stencil material | |||

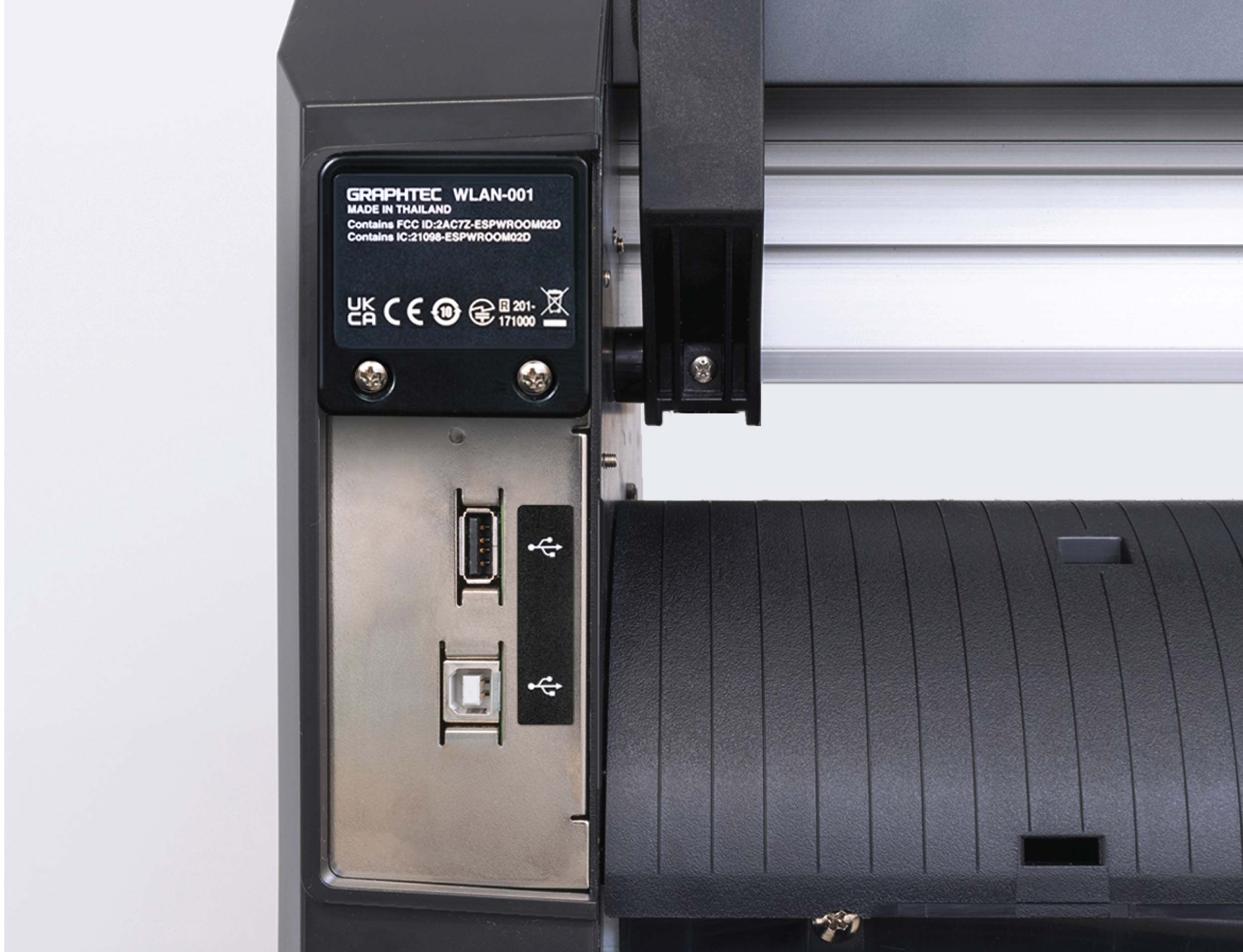

| Interface |
USB 2.0 (Full Speed) • Wireless LAN • 10BASE-T/100BASE-TX *5 (Ethernet available for EN models only) |
|||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ (Set by command or auto-detect) | |||

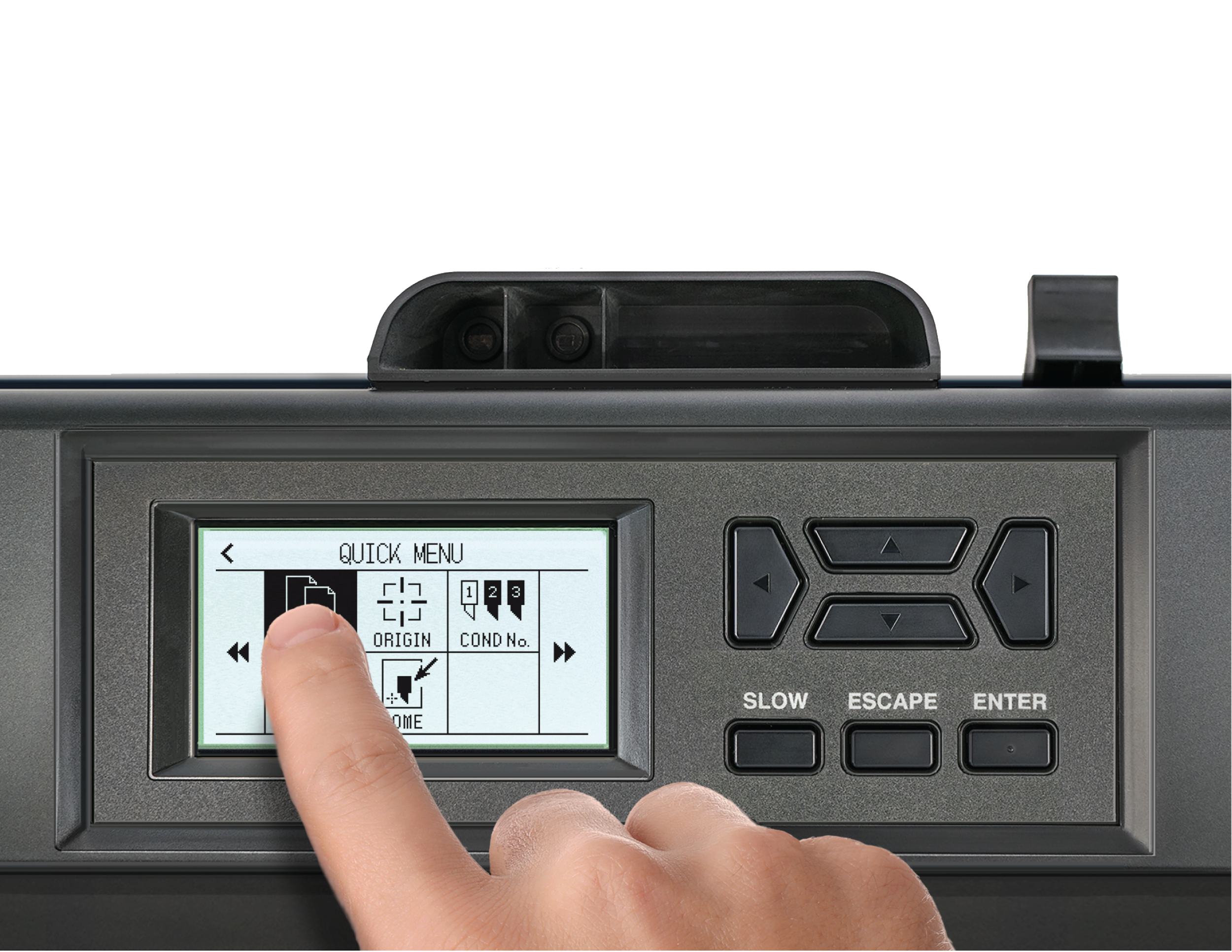

| Display | Touch Panel Screen (240-dot x 128-dot), supports 10 languages | |||
|
Registration Mark Sensing System |
Marks are scanned by an optical sensor (ARMS8.0), Segment area and Multiple marks compensation, 4-points axis alignment, Auto mark detection | |||
| Alignment accuracy | Maximum 0.3 mm with printed image (when reading specified registration marks) | |||
| Power source | 100 to 120, 200 to 240 V AC (Auto switch), 50 / 60 Hz | |||
| Power consumption | 120 VA | |||
| Operating environment | 10 to 35 ºC, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 16 to 32 ºC, 35 to 70 % R.H. (non-condensing) | |||
| External dimensions (W x D x H) | Approx. 26.65" x 17.76" x 10.5" | Approx. 35.5" x 23" x 42.4" | Approx. 65" x 32" x 42.3" | |
| Weight (Approx.) | 24.25 lbs (11kg) | 46.3 lbs (21kg) | 106 lbs (40kg) | |
| Compatible OS (*2) |
Windows 11 /10 / 8.1 / 64-bit editions Mac OS 10.2 (Sierra) to 13 (Ventura) |
|||
| Included software (download) | Graphtec Studio 2, Cutting Master 5 for Windows, and Mac | |||
| Warranty | 2 YEAR WARRANTY | |||
| Compatibility Standards | Safety | PSE, UL/cUL, CE mark | ||
| EMC | VCCI Class A, FCC Class A, CE mark | |||
