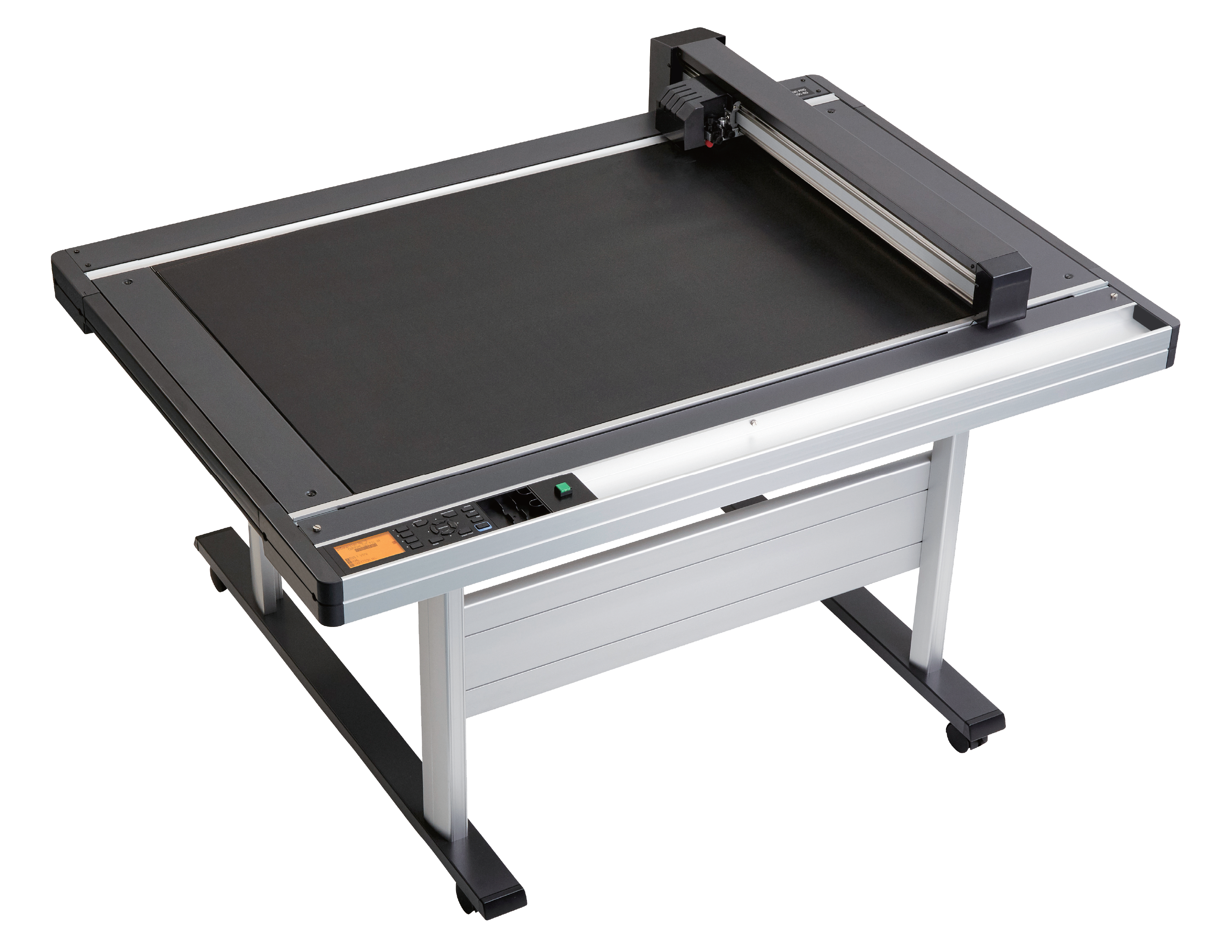

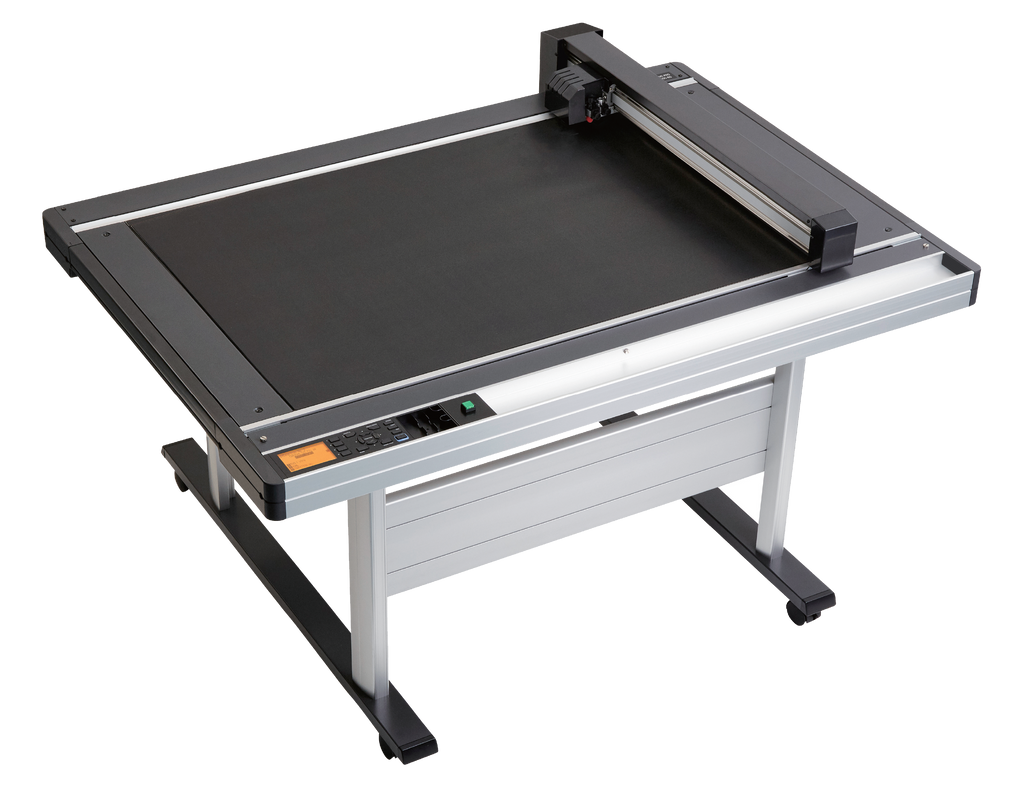

Graphtec FCX4000-60ES - 38" Flatbed Plotter (stand optional)

*Monument users, this is one of the smallest flatbed plotters available and will only cut up to 38" long. It's great if you don't have a lot of room, but will require you to cut anything over 25"x38" in multiple pieces. That's pretty simple in MemorialDESIGNER, so ask for a demonstration on that. it also does not have the option for vacuum suction so sandblast stencil must be taped down.*

Looking for the best plotter available for sandblast? Look no further than the Graphtec FCX2000 series of cutters. Flatbed plotters allow you to cut stencil of any size that fits in the cutting area. No need for punched holes, no more wasting the ends of the stencil. You can cut edge to edge. Just need to cut a death date? Toss on a scrap piece of stencil and cut away!

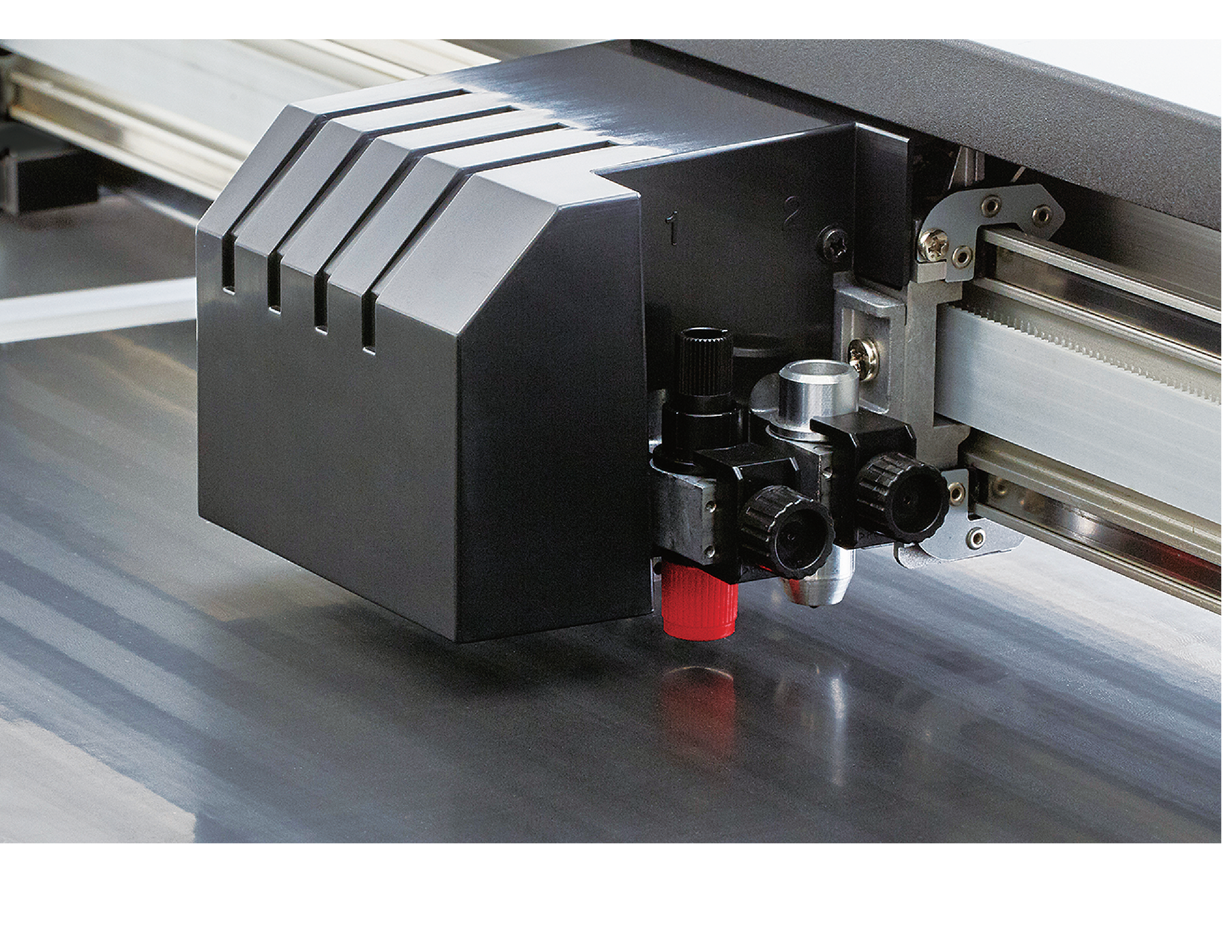

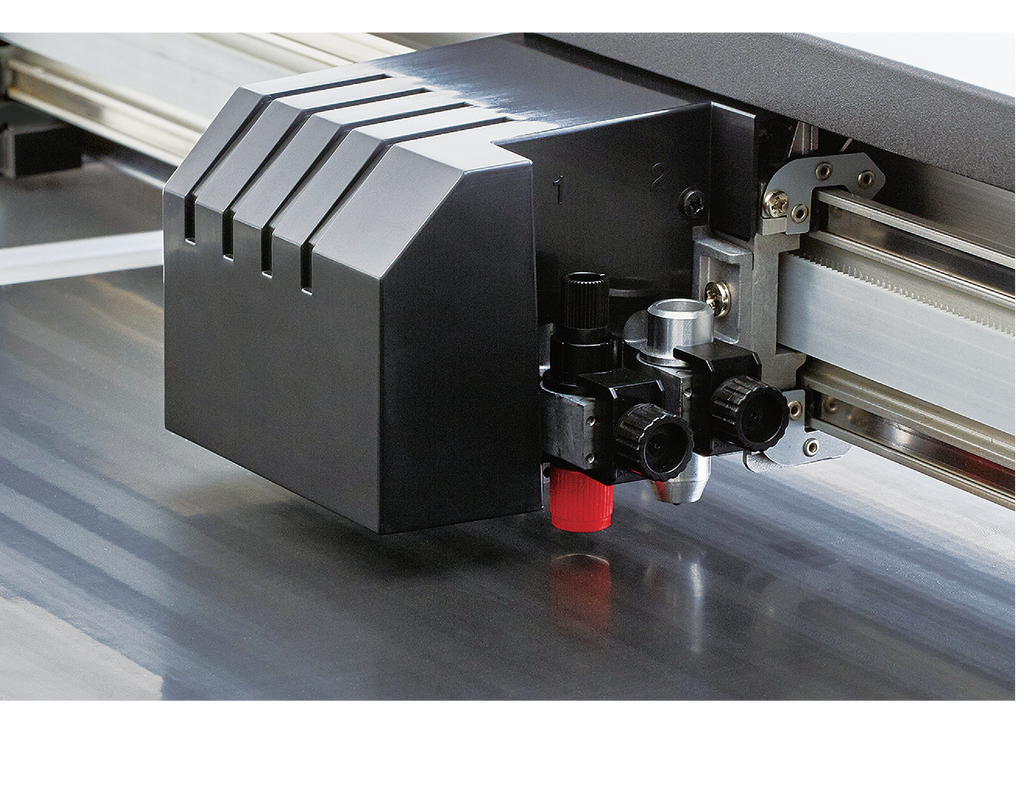

Having a hard time seeing the cut lines in your stencil? The FCX2000 series has dual blade holders which means you can put a pen in one of them and draw your design lines on the stencil first and then cut the lines over the drawing without having to swap out blade and pen! You will end up with black lines that can clearly be seen. No more missing those little pieces that are difficult to see.

For added convenience, add the vacuum kit and it will hold- own the stencil, eliminating the need to tape it down.

Need more information? Expand the Specifications section below. You can also see more details and compare models here:

FCX4000 Brochure

MODEL		FCX4000-50ES	FCX4000-60ES (stand optional)
Configuration		Digital servo system, Flatbed

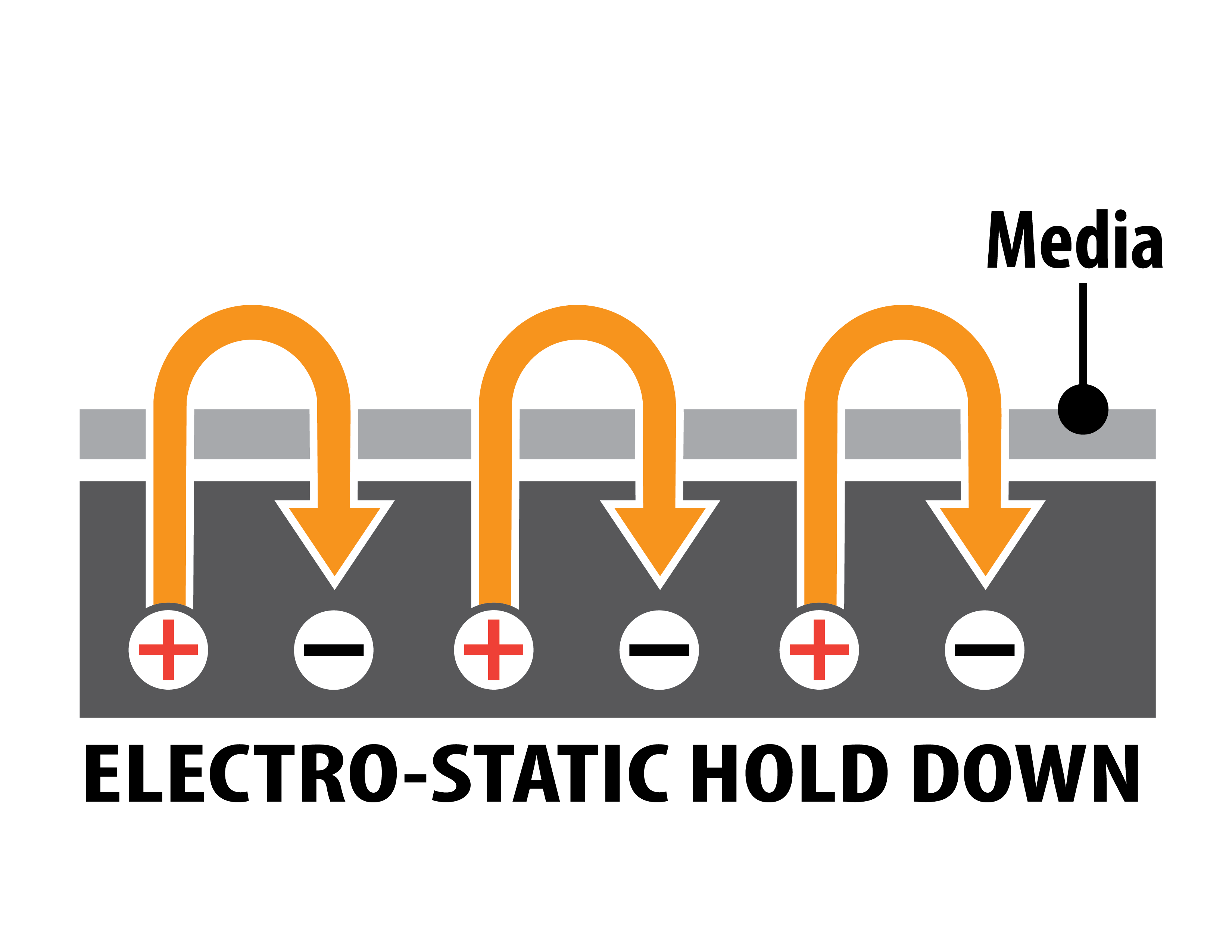

Media hold-down method		Electrostatic panel
Effective cutting area		W 25.98" x H 19.21"	W 38.4" x H 25.9"
Mountable media (Y-axis direction)		21.10"	27.97"
Maximum cutting speed		29.5"/s (1 to 75 cm/s in 23 steps)
Cutting pressure		Tool 1: Max. 5.88 N　(600 gf) Tool 2: Max. 5.88 N　(600 gf)
Cutting force settings		Tool 1: in 48 steps, Tool 2: in 48 steps
Minimum character size		Approx. 10 mm square (varies with character font and media)
Mechanical resolution		0.005 mm (5µm)
Programmable resolution		GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ (*1) : 0.025 mm
Distance accuracy		Max.0.2% of the distance moved or 0.1mm, whichever is larger (excluding contraction of media, in plotting/cutting mode) (*2)
Perpendicularity		Max 0.3 mm / 16.93" (excluding contraction of media, in plotting/cutting mode)	Max 0.4 mm / 24.01" (excluding contraction of media, in plotting/cutting mode)
Repeatability		Max 0.1mm (excluding contraction of media, in plotting/cutting mode)(*2)
Standard interfaces		USB2.0 (Full Speed) / RS-232C / Ethernet (10BASE-T/100BASE-TX)
Buffer memory		2MB
Command sets		GP-GL / HP-GL™ / AUTO (Automatic switching in GP-GL and HP-GL™)
Number of tools		2 tools
Cutter blade, pen, and tool types		Cutter blade: supersteel Pen: Oil-based Ball-point pen Creasing/Scoring tool

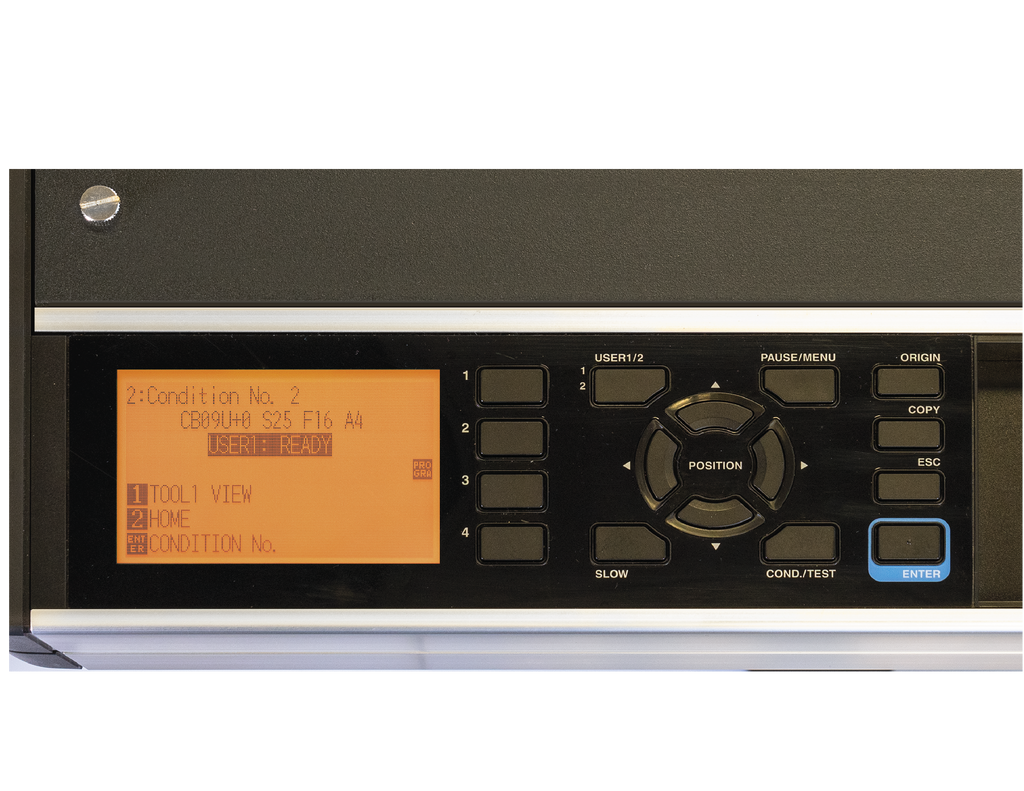

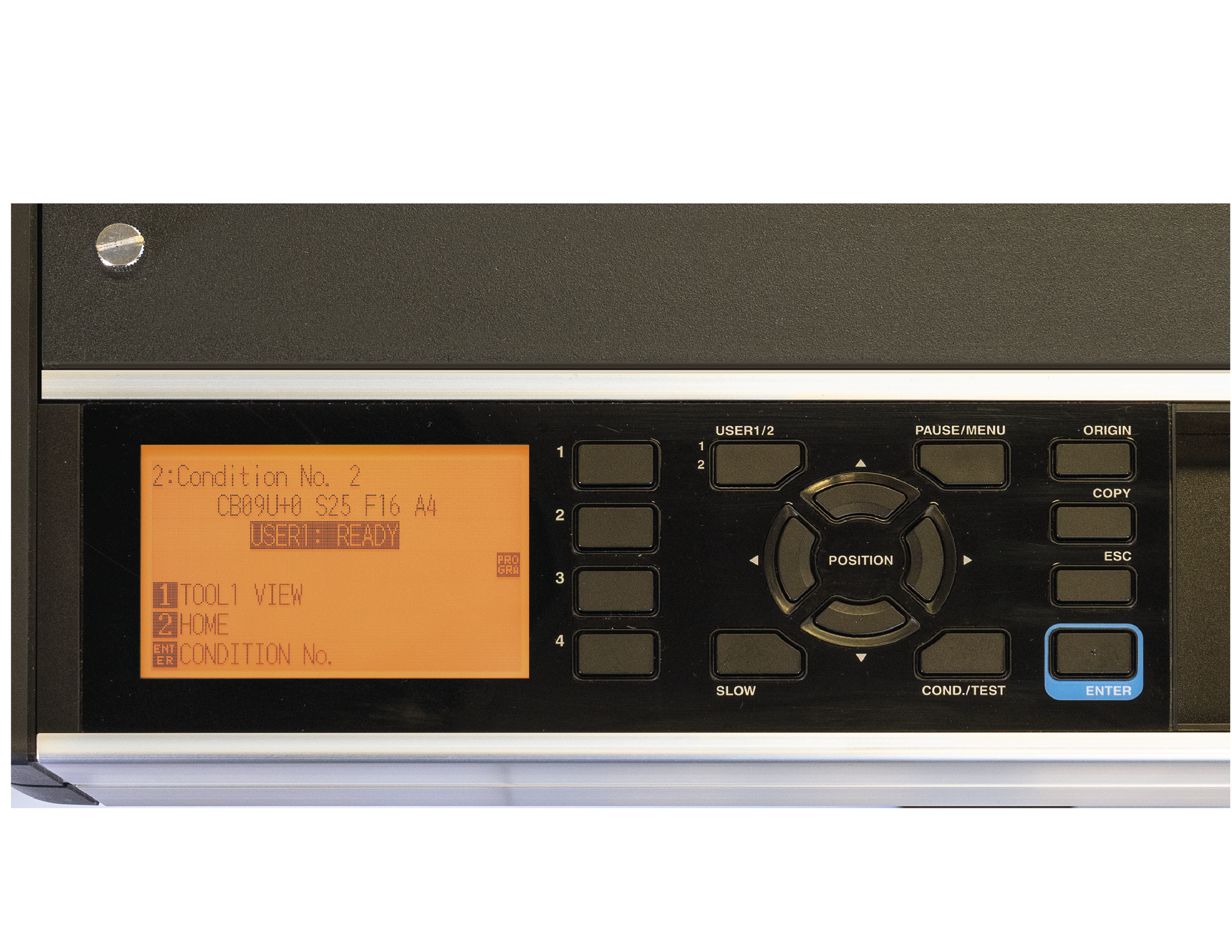

Operating panel		3.7-inch graphical LCD (same LCD as the FCX2000)
New features		Dual configuration, Creasing in the curve, Perforation cutting (performed by the force control), Data management using the bar-code, Offline cutting operation using the USB memory, Display the degree of wear for the cutting blade, Confirming the cutting object size, Draft mode (higher throughput in arc)
Power supply		100 to 240 V AC, 50/60 Hz (Auto switching)
Power consumption		Max. 120 VA
Operating environment		Temperature: 10 to 35 degree C , Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment		Temperature: 16 to 32 degree C, Humidity: 35% to 70% RH (non-condensing)
External dimensions (*3) (W x D x H)		W 42.87" x D 35.31" x H 8.03"	W 55.31" x D 42.08" x H 8.03" (including stand : W 55.31" x D 43.18" x H 35.27")
Weight		approx. 63.93 lbs (29kg)	approx. 83.77 lbs (38 kg) (including stand 121.25 lbs (55 kg)
Compatible OS 6(4)(5)		Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 10.13 (Ventura)
Included Software (*6)		Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Warranty		2 YEAR WARRANTY
Compatible Standards	Safety	UL/cUL, CE mark
Compatible Standards	EMC	VCCI Class A, FCC Class A, CE mark (EN55032, others)

Select Your Package Plotter Only - no Stand Plotter & Stand Starter Package without Stand (Plotter - Red Blade Holder - Pen Holder - 5 Blades) Starter Package with Stand (Plotter - Red Blade Holder - Pen Holder - 5 Blades)
