Graphtec FCX2000-120VC - 47" Flatbed Plotter

Plotter Only

$22,000.00

1/4

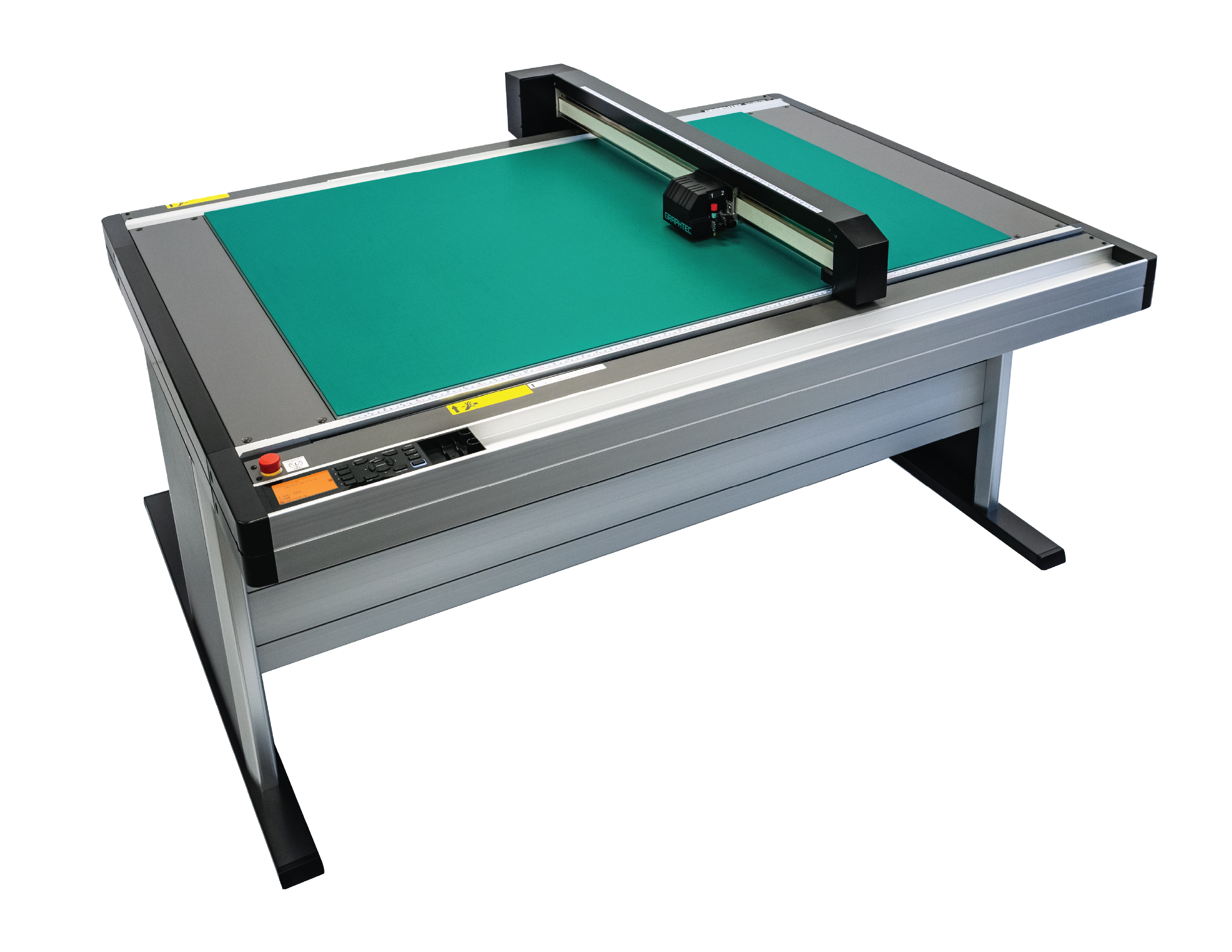

Graphtec FCX2000-120VC - 47" Flatbed Plotter

Looking for the best plotter available for sandblast? Look no further than the Graphtec FCX2000 series of cutters. Flatbed plotters allow you to cut stencil of any size that fits in the cutting area. No need for punched holes, no more wasting the ends of the stencil. You can cut edge to edge. Just need to cut a death date? Toss on a scrap piece of stencil and cut away!

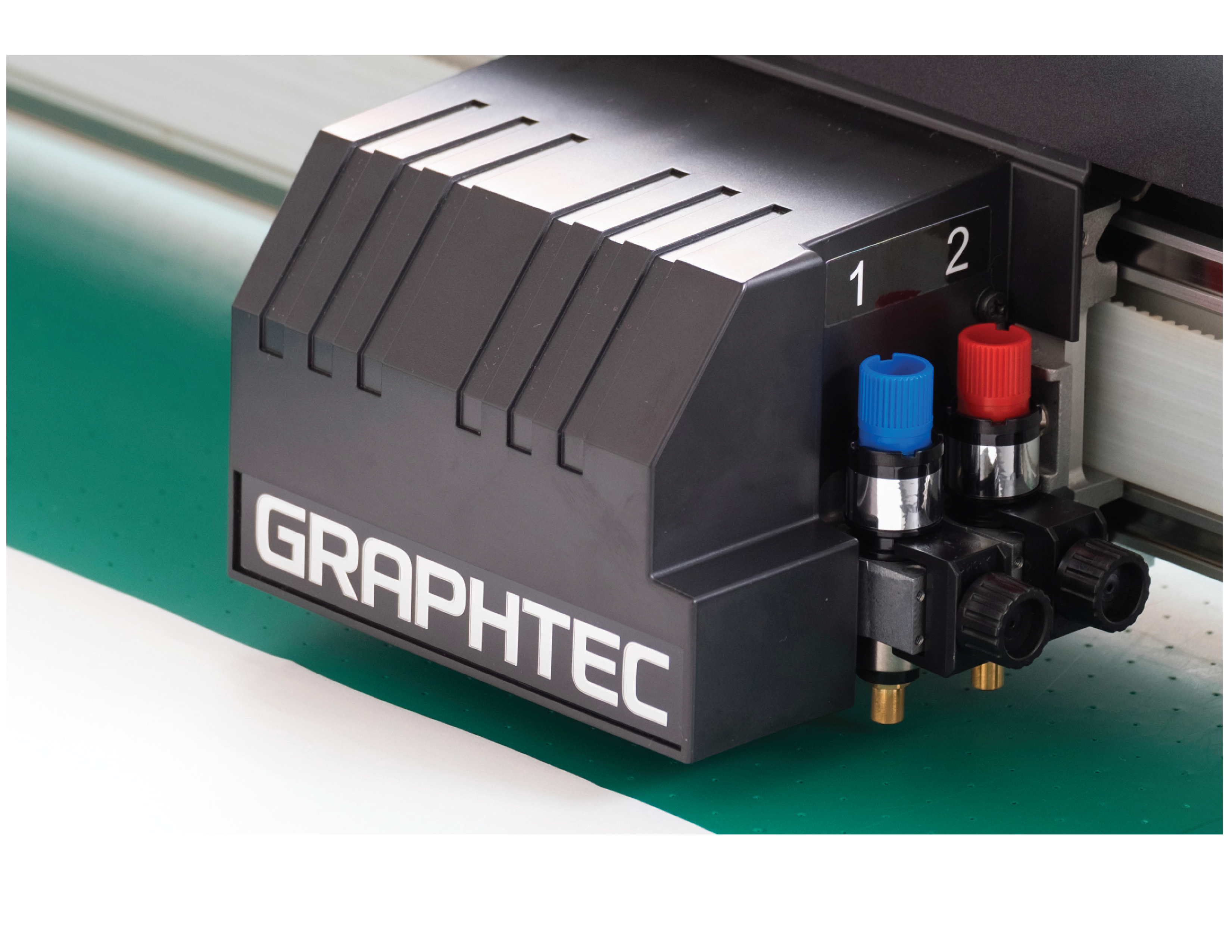

Having a hard time seeing the cut lines in your stencil? The FCX2000 series has dual blade holders which means you can put a pen in one of them and draw your design lines on the stencil first and then cut the lines over the drawing without having to swap out blade and pen! You will end up with black lines that can clearly be seen. No more missing those little pieces that are difficult to see.

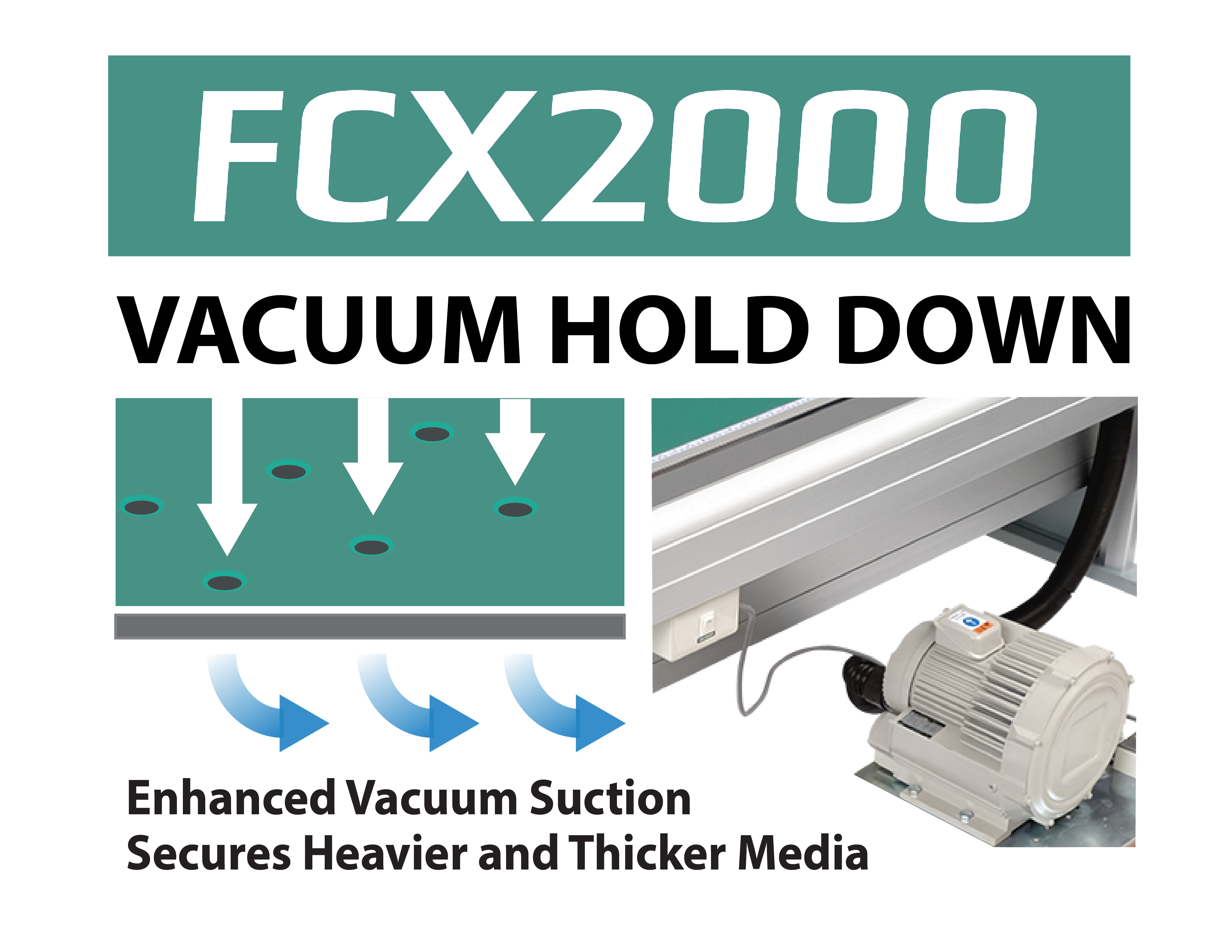

For added convenience, add the vacuum kit and it will hold- own the stencil, eliminating the need to tape it down.

Need more information? Expand the Specifications section below. You can also see more details and compare models here:

FCX2000 Brochure

MODEL		FCX2000-60VC	FCX2000-120VC	FCX2000-180VC
Configuration		Digital servo system, Flatbed
Media hold-down method		Vacuum suction (optional)
Effective cutting area		24 in x 36 in (610mm x 920mm)	47.2 in x 36 in (1,200mm x 920mm)	70.8 in x 36 in (1,800mm x 920mm
Mountable media (Y-axis)		3 ft 1.4 in (950mm)
Roll media support		Roll media stocker (manual), supported media width up to 950 mm, weight up to 5 kg
Maximum cutting speed		1 ft 3.7 inch/sec (400 mm/sec) (1 to 40 cm/s in 16 steps), in all directions
Cutting force		Tool 1: Max. 4.9 N (500 gf), Tool 2: Max. 9.8 N (1 kgf)
Cutting force settings		Tool 1: in 40 steps, Tool 2: in 40 steps
Minimum character size		Approx. 10 mm square (varies with character font and media)
Programmable resolution		GP-GL mode: 0.1/0.05/0.025/0.01 mm, HP-GL™ : 0.025 mm
Distance accuracy		Max. 0.1% of the distance moved or 0.1 mm, whichever is larger (in plotting mode) (*2)
Perpendicularity		Max 0.5 mm / 900 mm (in plotting mode)
Repeatability		Max 0.1 mm (excluding contraction of media, in plotting/cutting mode) (*2)
Standard interfaces		RS-232C, USB2.0 (High-Speed), and Ethernet (10BASE-T/100BASE-TX)
Buffer memory		2MB
Command sets		GP-GL and HP-GL™ emulation (set by menu, or selects automatically by received data)
Number of tools		Two tools
Cutting blade, pen, and tool types		Cutting blade (supersteel), Pen (Oil-based ballpoint pen), and Creasing/scoring tool
Others		ARMS, Reverse side Cutting/Creasing using ARMS, ARMS Copy function, Creasing, Cutting/creasing in multiple passes
Power source		100 to 240 VAC, 50/60 Hz (Auto switching)
Power consumption		Max. 140 VA
Pumps		110V has 1.5 horse power, 220V has 2.5 horse power
Operating environment		Temperature: +10 to +35 ºC, Humidity: 35 to 75% RH (non-condensing)
Guaranteed accuracy environment		Temperature: +16 to +32 ºC, Humidity: 35% to 70% RH (non-condensing)
External dimensions [W x D x H] (Approx.)		W 52.9 x D 55.4 x H 36.6 in 1344 x 1409 x 930 mm (Including stand)	W 76.1 x D 55.4 x H 36.6 in 1934 x 1409 x 930 mm (Including stand)	W 99.7 x D 55.4 x H 36.6 in 2534 x 1409 x 930 mm (Including stand)
Weight (Approx.)		167.5 lb (Including stand) (*3)	218.2 lb (Including stand) (*3)	225.7 lb (Including stand) (*3)
Compatible OS (*4)		Windows 11 /10 / 8.1 / 64-bit editions & MacOS 10.2 (Sierra) to 10.13 (Ventura)
Included Software (*5)		Graphtec Studio 2, Cutting Master 5 Plug-in for Windows and Mac
Warranty		2 YEAR WARRANTY
Compatible Standards	Safety	UL60950-1/cUL, CE marking (Low voltage and EMC)
Compatible Standards	EMC	FCC-A, EN55032-A
